Calculation of Electrode Consumption







Calculation of Electrode Consumption

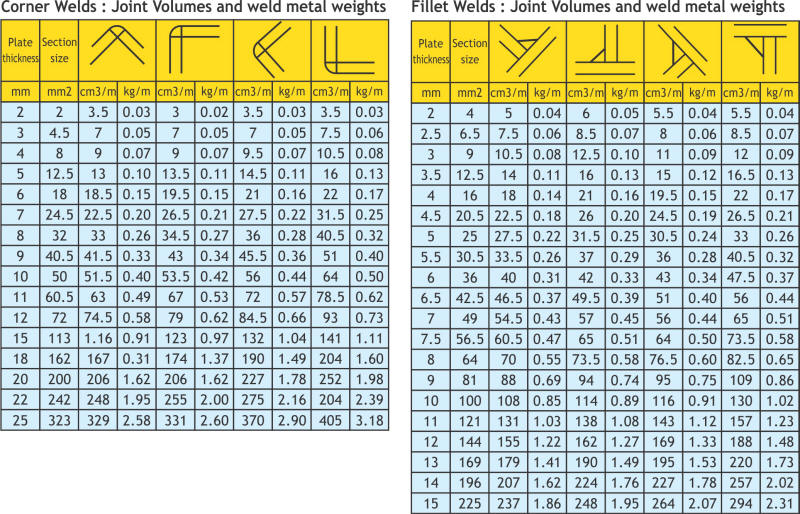

In the tables, joint cross section, theoretical joint volume and kg weld metal per metre length of welded joint are given. The electrode consumption per metre of welded joint is obtained by dividing the number of kg of weld metal by N, where N is the kg of weld metal per kg of electrode.

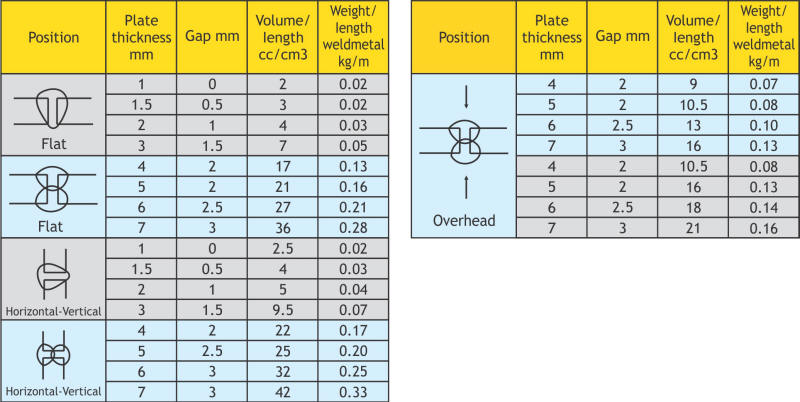

Square butt joints : Joint volumes and weld metal weights


Calculation of Electrode Consumption



Calculation of Electrode Consumption





Calculation of Electrode Consumption

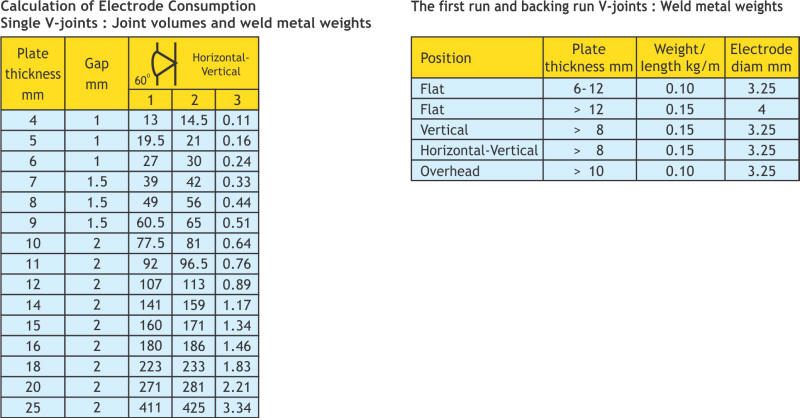

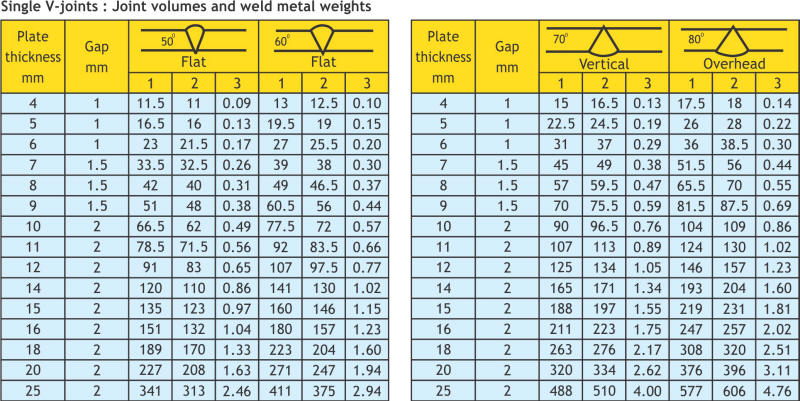

1 Theoretical volume cc/m: 2 Actual joint volume cc/m (taking account of transverse shrinkage); 3 Deposited weld metal kg/m



Calculation of Electrode Consumption
