CO2 MIG Wire

C02 MIG Wire Random Winding

Random Winding

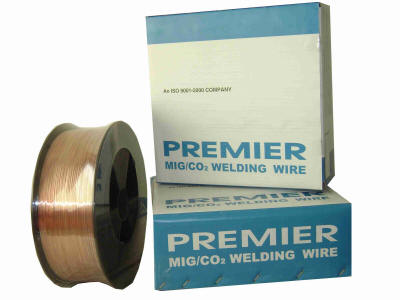

CO2 MIG Wire - Random Winding

Characteristics :
"Premier" MIG wires are copper coated solid steel wires suitable for continuous welding fr general purpose fabrication on low to medium carbon steels. These wires are manufactured by wet drawing and special coppering process ensuring longer shelf life, easy feed and current pickup. The wire gives uniform and sound weld metal deposit.

Applications :
Mild and structural steel with Tensile Strength up to 55 kg/mm2



Classifications :

IS 6419 :

1996 Grade S4

AWS A5 18 :

ER70S-6

BS 2901 :

A-18

DN 8559 :

SG2

Co2 Wire Winding India

Wire Chemistry Composition

 Element

Percent

C 0.06-0.12
Si 0.80-1.15
Mn 1.40 to 1.60
S 0.025
P 0.025

Mechanical Properties of all weld Metal


Ultimate Tensile Strength Kgf/mm2

Yield Strength Kgf/mm2

Enlongation % (L=5d)

Charpy-V Impact value at -29 degree C KGfm

Minimum values required 51 42.8 22 2.80
Typical values 57.8 46.9 31 6.40

Welding Data :



Size Dia (mm)

0.8 1.0 1.2 1.6

Welding Amps.

50-180 75-220 90-300 180-500

Welding Position

Downhand/horizontal/vertical

Spool Size

300 mm Od * 50.5 mm ID * 103mm Width

Net Weight

12 to 15 Kgs. Per Spool Approximately
